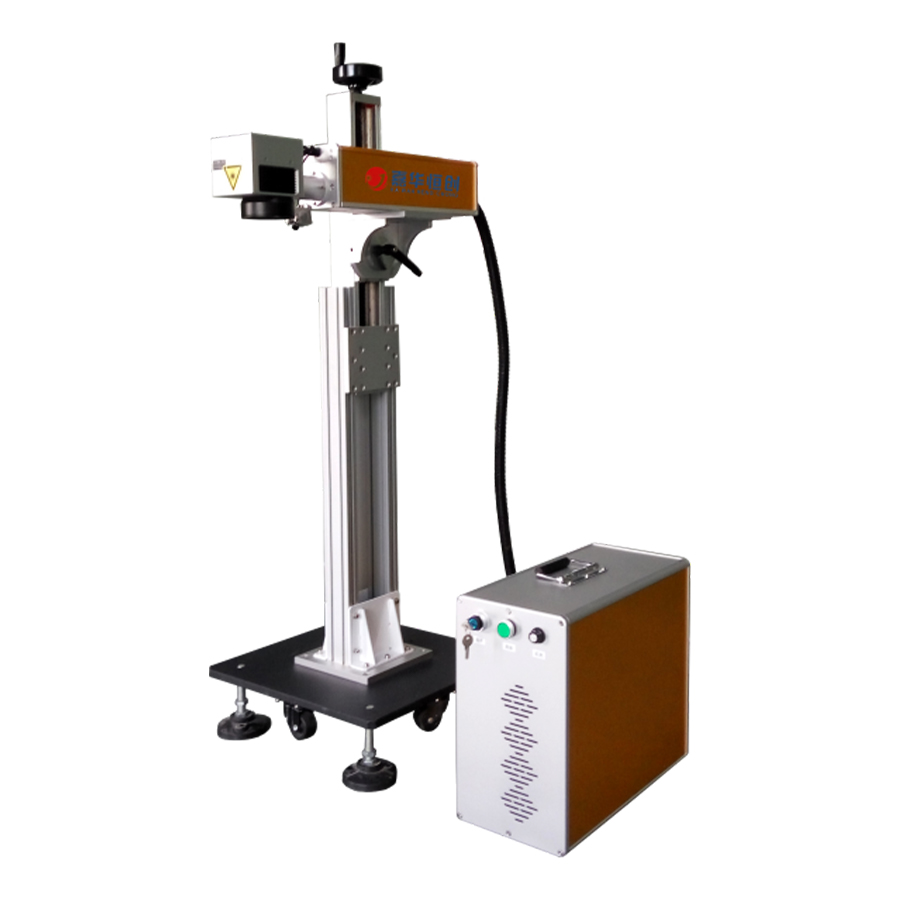

Fiber laser marking machine
Materials:
Gold and silver jewelry, auto parts, integrated circuits, electronic components, silicon crystal, electronic accessories, communications, computers, mobile phone accessories, watches and clocks, glasses, handicrafts, hardware props, kitchen equipment, buttons, packaging bottles, sanitary ware faucet.
Product Application: All metals,PC, ABS, PVC, PES, nylon and most of non-metallic materials
Features
- Stable output laser, nice laser mode, fine marking lines.
- High light frequency, high marking speed, high efficiency
- Long working life and up to more than 100000 hours.
- The laser generator uses an integrated whole structure and an air-cooled system,no optical pollution, high efficiency, less maintenance.
- The software us compatible with DXF,PLT,BMP,AI,JPG and other formats, and can automatically generate serial number, production date, bar code and two-dimensional code.
Parameters
| Parameter model | 1OW power | 2OW power | 30W power | 6OW power |
| Max laser power | 10w | 20w | 30w | 60w |
| Wavelength | 1064nm | |||
| Beam quality | <1.4 | <1.5 | <1.8 | <2.0 |
| Frequency range | 20-80KH | |||
| Power adjustable range | 0-100% | |||
| Repeat accuracy | ±0.002mm | |||
| Maximum scanning speed | 8000mm/s | |||
| Marking range | 50mm x 50mm-300mm x 300mm | |||
| Power requirements | 220v ± 10% / 50Hz / 15A | |||
| Cooling method | Air cooling | |||
| Power consumption of the whole machine | 500W | |||
| Product size information | 145cm x 75cm x 60cm | |||
| Operating system information | WinXP Win7 USB2.0/3.0 interface | |||
