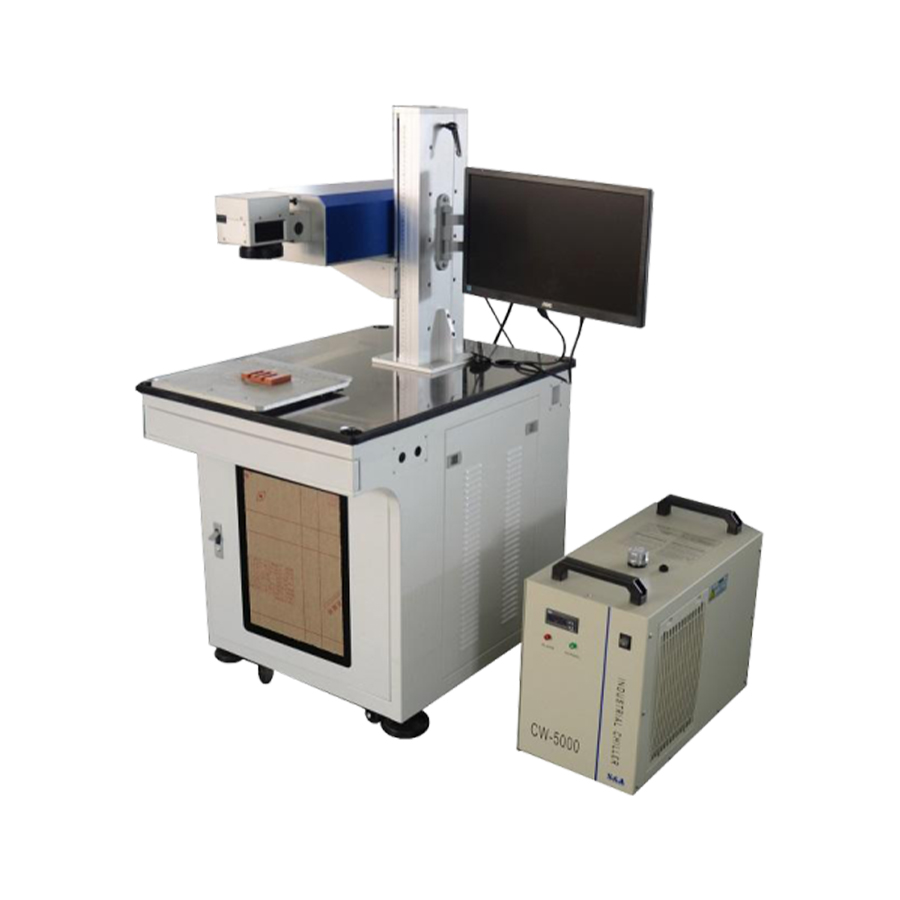

UV laser marking machine
Materials:
LED, LCD, LCD screen, plasma screen, button, flexible PCB board, medicine, cosmetics, flat panel display production, electronic components, gifts, communication equipment, solar energy, battery materials processing, textile, polymer film, Crystal glass and other materials etc
Product Application: LED, LCD, LCD screen, plasma screen, button, flexible PCB board, medicine, cosmetics, flat panel display production, electronic components, gifts, communication equipment, solar energy, battery materials processing, textile, polymer film, Crystal glass and other materials etc
Features
- High light beam quality, small focus spot ,ultra-fine mark, high marking speed ,high efficiency.
- Most of materials can absorb ultraviolet light, so a wide range of applications.
- The heat affected area is extremely small, which will not produce thermal effects and material scorching.
- High-performance UV laser generator, high-precision scanning shock lens, high precision, long life.
- Stable machine performance, small size, low power consumption.
- Precision linear motor working table, high precision, high speed.
- High precision CCD positioning, automatic positioning, automatic calibration.
Parameters
Parameter model | JH-UV03 | JH-UV05 | JH-UV10 |
Laser power | 3W | 5W | 10W |
Laser wavelength | 355nm | ||
Writing range | 50*50mm-—160*160mm | ||
Marking speed | ≤8000mm/s | ||
Beam quality | <1.5 | ||
Q modulation frequency | 8KHz-80KHz | ||
Minimum line width | 0.01mm | ||
Minimum character | 0.1mm | ||
Repeat accuracy | ±0.03mm | ||
Overall power | 2kw | ||
Power demand | 220V single phase/50Hz/10A |
