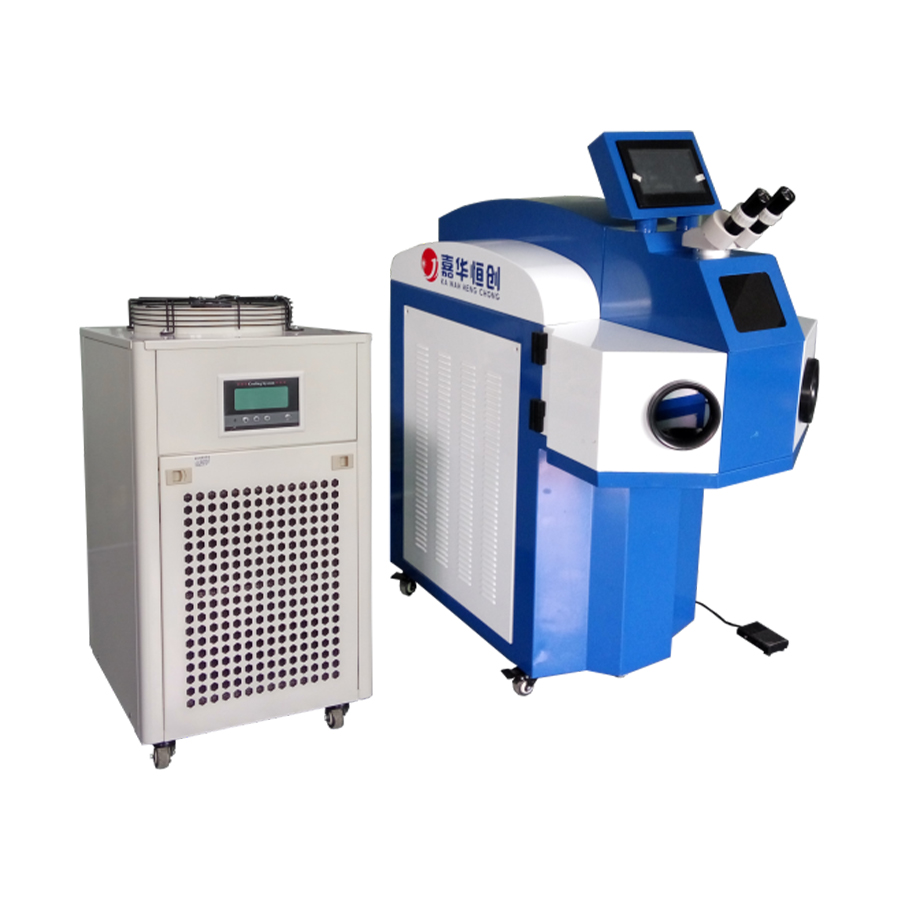

Jewelry laser welding machine

Materials:

Gold and silver jewelery, electronic components, denture denture hole and spot welding trachoma, watches and clocks gossamer, integrated circuits and other welding; gold, silver, K gold, copper, aluminum, stainless steel and other metal and other alloy products

Product Application: Gold and silver jewelery, electronic components, denture denture hole and spot welding trachoma, watches and clocks gossamer, integrated circuits and other welding; gold, silver, K gold, copper, aluminum, stainless steel and other metal and other alloy products

Contact Now Tel: +86-13410325664

Features

  1. Energy,pulse width ,frequency, spot size and so on can be adjusted in a large range to achieve a variety of welding effects. The parameters are adjusted by the closed chamber control lever, simple and efficient
  2. Use the imported ceramic condenser chamber from UK corrosion resistance, high temperature resistance ,high Photoelectric conversion efficiency, Condenser cavity life (8-10 years), xenon lamp life of more than 800 million times
  3. With 24 hours of continuous work capacity, machine performance and stability, within 10,000 hours without maintenance
  4. Humanized design, ergonomic, long hours of work you will not feel tired.
  5. With a cross-cursor dedicated microscope observation system, magnification 10 times. With high-speed electronic filter protection device to protect the operator’s eyes are not laser damage, ease the operator’s eye fatigue, improve work efficiency.

Parameters

Parameter model 150H power 20OW power 30OW power
Max laser power 15ow 2oow 30ow
Maximum laser peak power 4Kw 6Kw 8Kw
Maximum laser pulse energy 40J 60J 8oJ
Maximum welding depth 0.1—1.0mm 0.1—2mm 0.1-3mm
Pulse width 0.1—20ms 0.1—30ms
Energy stability <±5%
Pulse frequency 1—50Hz
Minimum welding pool 0.15mm
Minimum welding spot diameter 0.1—3mm
Cooling method External high-precision constant temperature circulating chiller
Aim positioning method Microscope/red light indicator/CCD camera optional
Power demand 220V±5%/5OHz/40A
