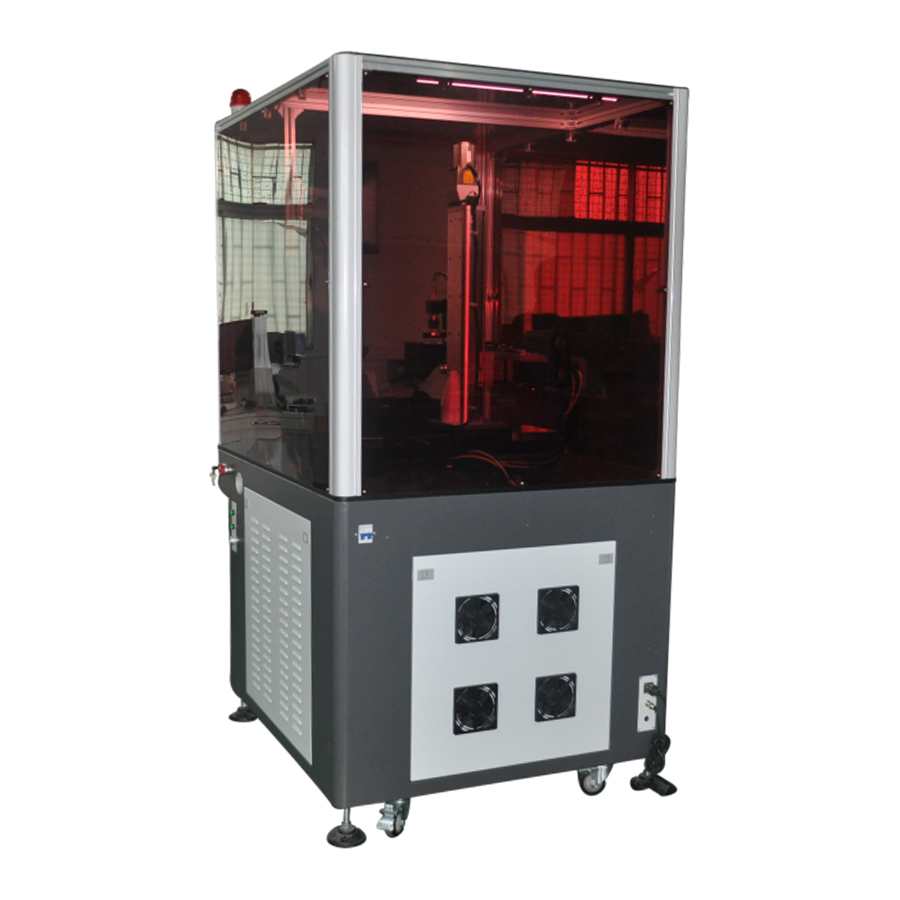

Fiber laser marking machine

Materials:

Gold and silver jewelry, auto parts, integrated circuits, electronic components, silicon crystal, electronic accessories, communications, computers, mobile phone accessories, watches and clocks, glasses, handicrafts, hardware props, kitchen equipment, buttons, packaging bottles, sanitary ware faucet.

Product Application: All metals,PC, ABS, PVC, PES, nylon and most of non-metallic materials

Features

  1. Stable output laser, nice laser mode, fine marking lines.
  2. High light frequency, high marking speed, high efficiency
  3. Long working life and up to more than 100000 hours.
  4. The laser generator uses an integrated whole structure and an air-cooled system,no optical pollution, high efficiency, less maintenance.
  5. The software us compatible with DXF,PLT,BMP,AI,JPG and other formats, and can automatically generate serial number, production date, bar code and two-dimensional code.

Parameters

Parameter model 1OW power 2OW power 30W power 6OW power
Max laser power 10w 20w 30w 60w
Wavelength 1064nm
Beam quality <1.4 <1.5 <1.8 <2.0
Frequency range 20-80KH
Power adjustable range 0-100%
Repeat accuracy ±0.002mm
Maximum scanning speed 8000mm/s
Marking range 50mm x 50mm-300mm x 300mm
Power requirements 220v ± 10% / 50Hz / 15A
Cooling method Air cooling
Power consumption of the whole machine 500W
Product size information 145cm x 75cm x 60cm
Operating system information WinXP Win7 USB2.0/3.0 interface
