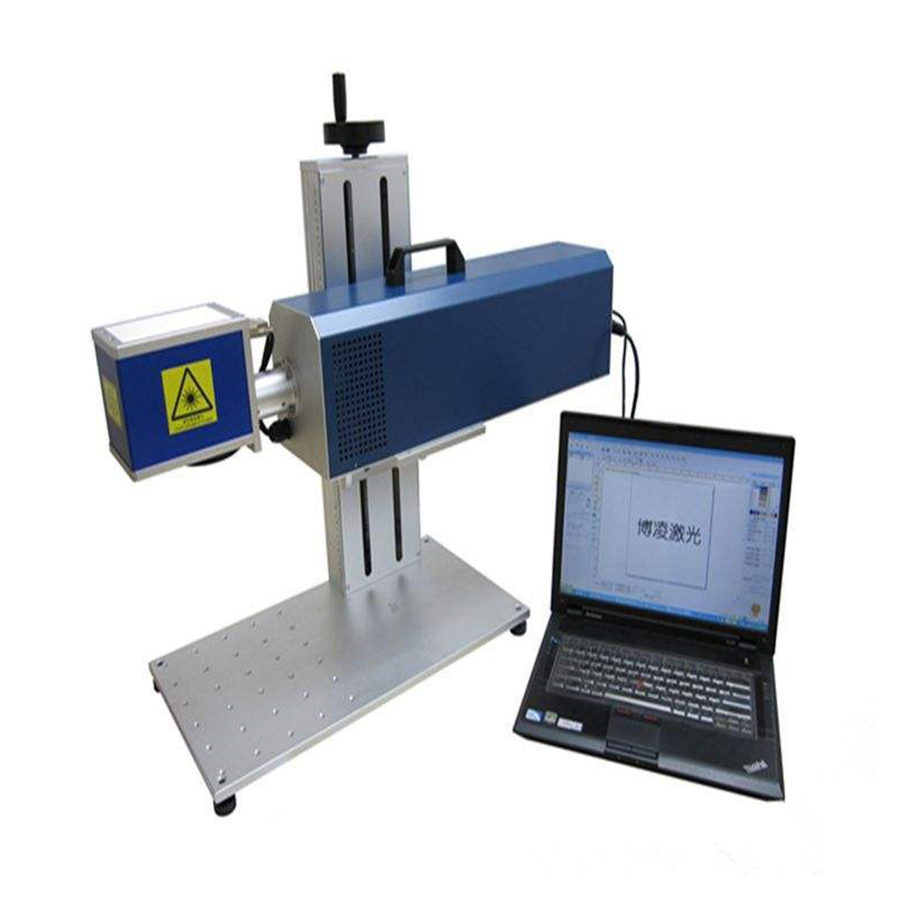

CO2 laser marking machine


jade jewelry, mahogany furniture, electronic components, instrumentation, clothing, bamboo, leather, luggage, ABS, PVC, acrylic, glass, unsaturated polyester, cosmetics, beverages, food and medicine bags, etc

Product Application: For all kinds of non-metallic materials marking, carving, hollow, cutting.


  1. High precision, high speed, free to control the depth of carving.
  2. Large laser power, can be applied to a variety of sub-metal products for carving and cutting.
  3. No consumables, low processing costs, laser generator working hours can up to more than 20000h.
  4. Clear marking effect , not easy to wear, high efficiency, environmental protection and energy saving


Parameter model JH-CO10W JH-CO30W JH-CO50W JH-CO100W
Laser power Note that the table changes 10W 30W 50W 100W
Laser wavelength 10.6um
Repeat frequency ≤30KHz
Engraving range 100*100mm (standard)-300*300mm
Optional range 100*100mm
Engraving depth ≤3mm ≤5mm ≤7mm ≤10mm
Carving line speed ≤5000mm/s
Minimum line width 0.1mm 0.1mm 0.15mm 0.15mm
Minimum character 0.4mm
Repeat accuracy ±0.01mm
Cooling method Built-in air cooling system
Power consumption of the whole machine ≤1.2KW
Power demand 220V single phase/50Hz/32A
